Symbol 520.1

Description

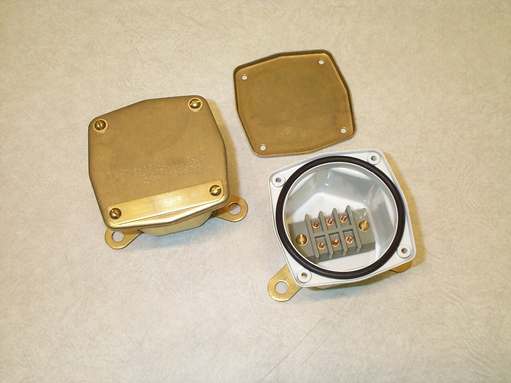

Terminal Box, 6 terminals, 18 wires, 600 volts, 30 amps per terminal, submersible to 15 feet. 1 Type 6TB6 terminal board mounted in a 3" brass enclosure. P/N M24558/1-520.1 per MIL-T-24558/1. NSN 5940-00-351-2222.

Click here for the Drawing for 404-520.1
